Fanuc LR Mate 200iD/7H w/ R-30iB Control

$12,500.00

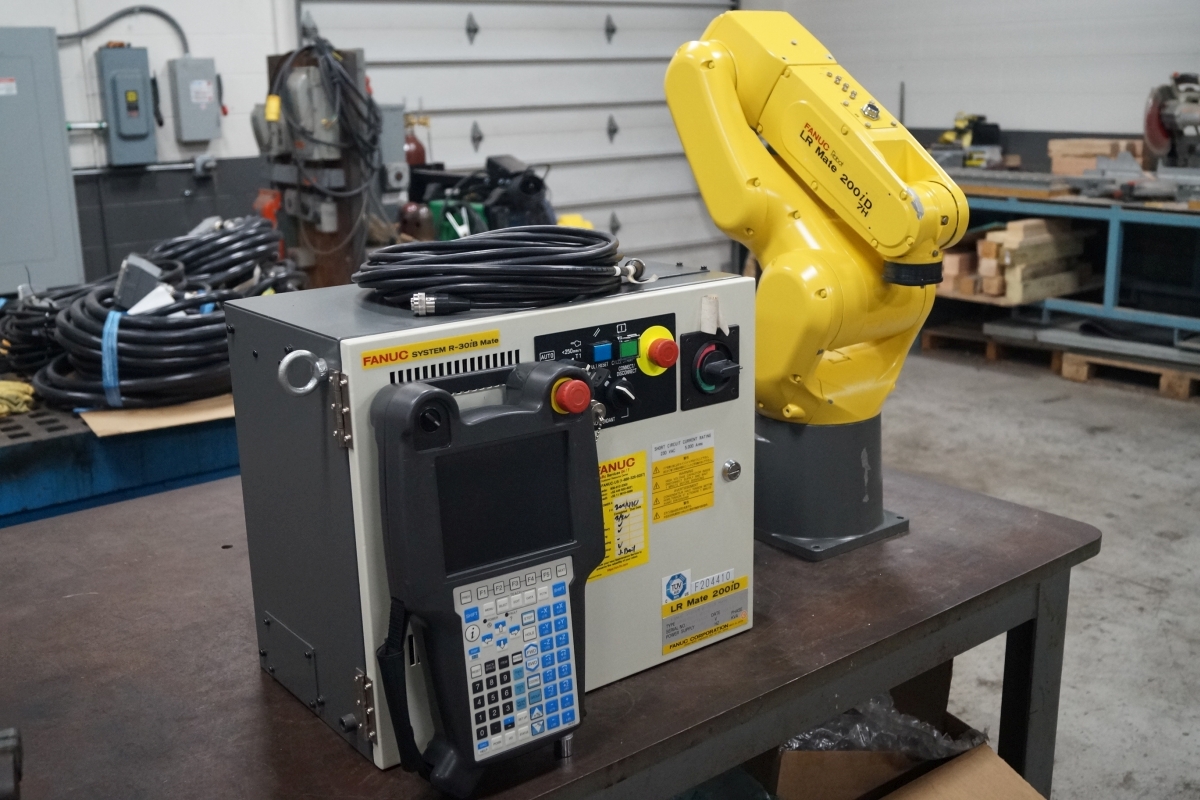

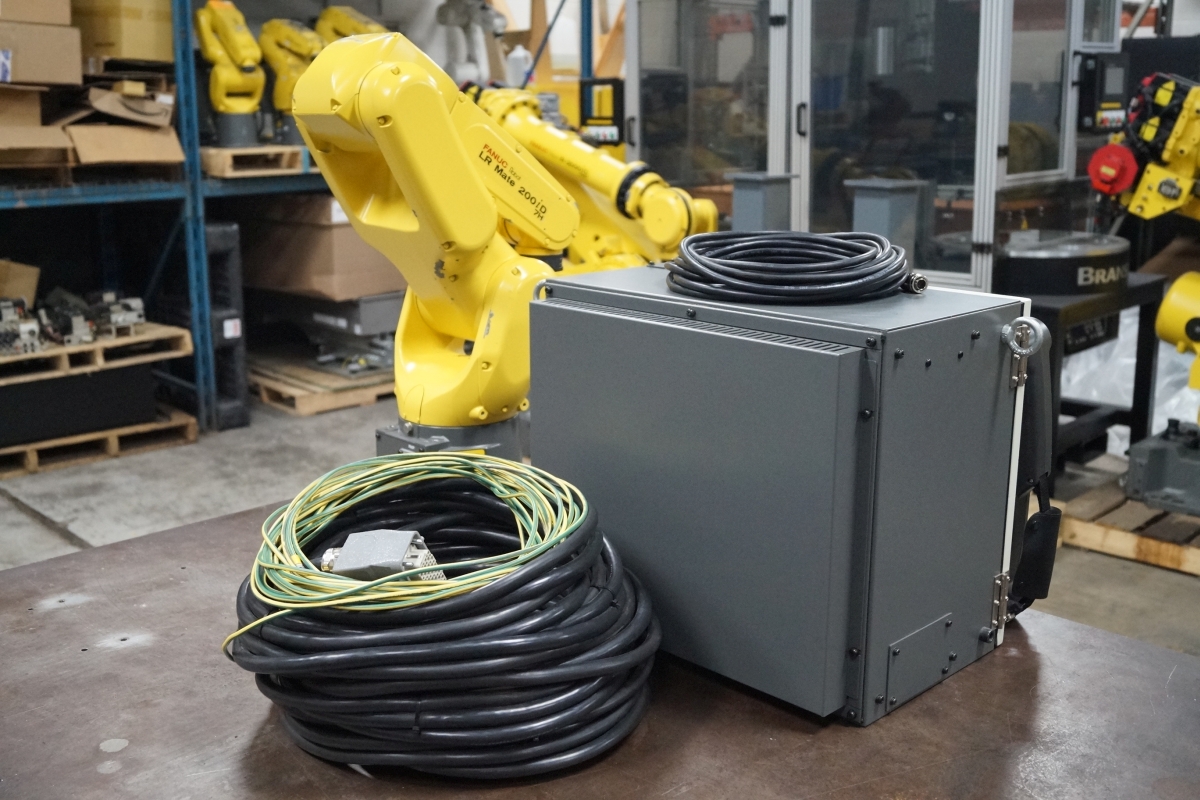

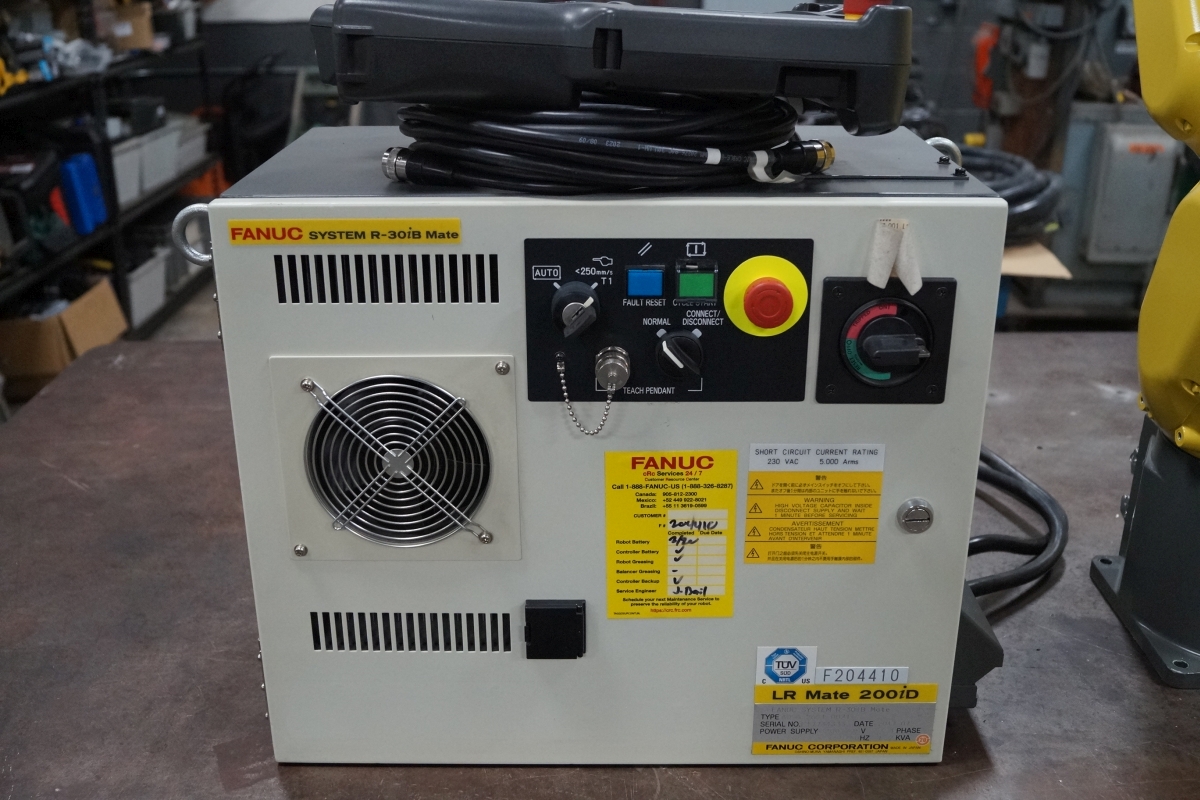

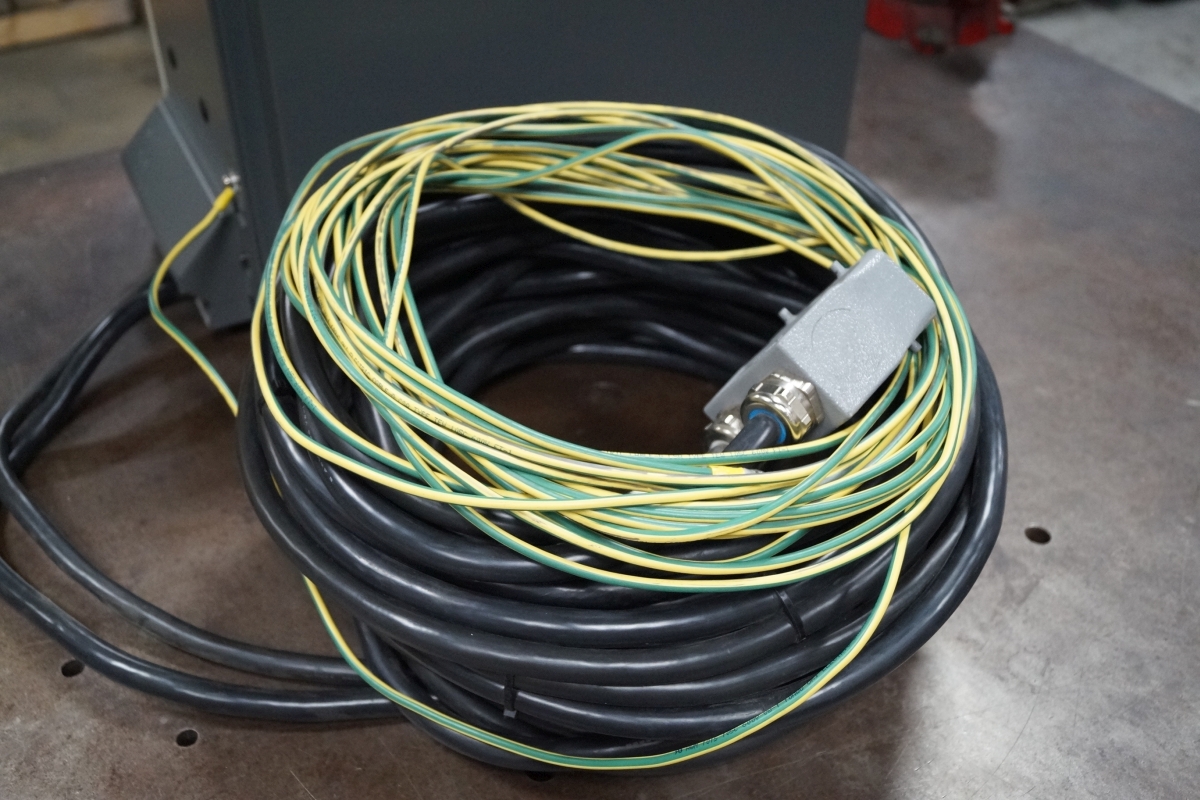

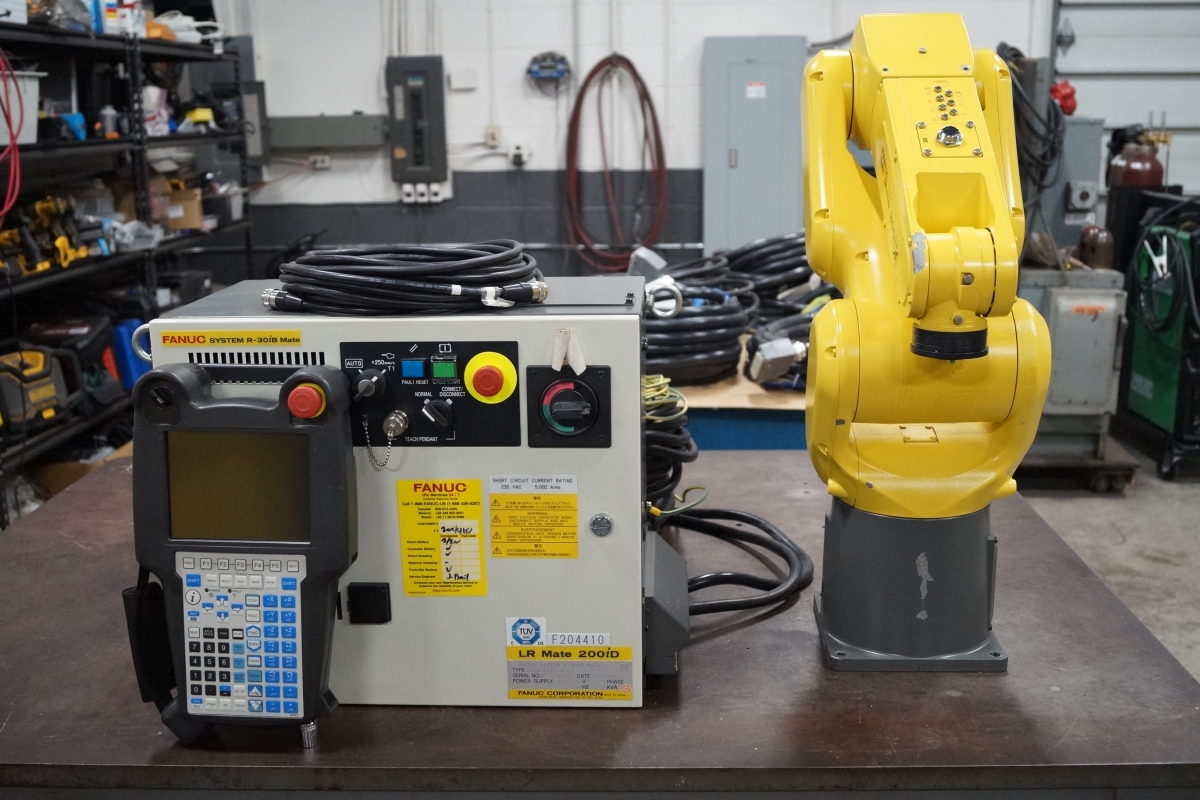

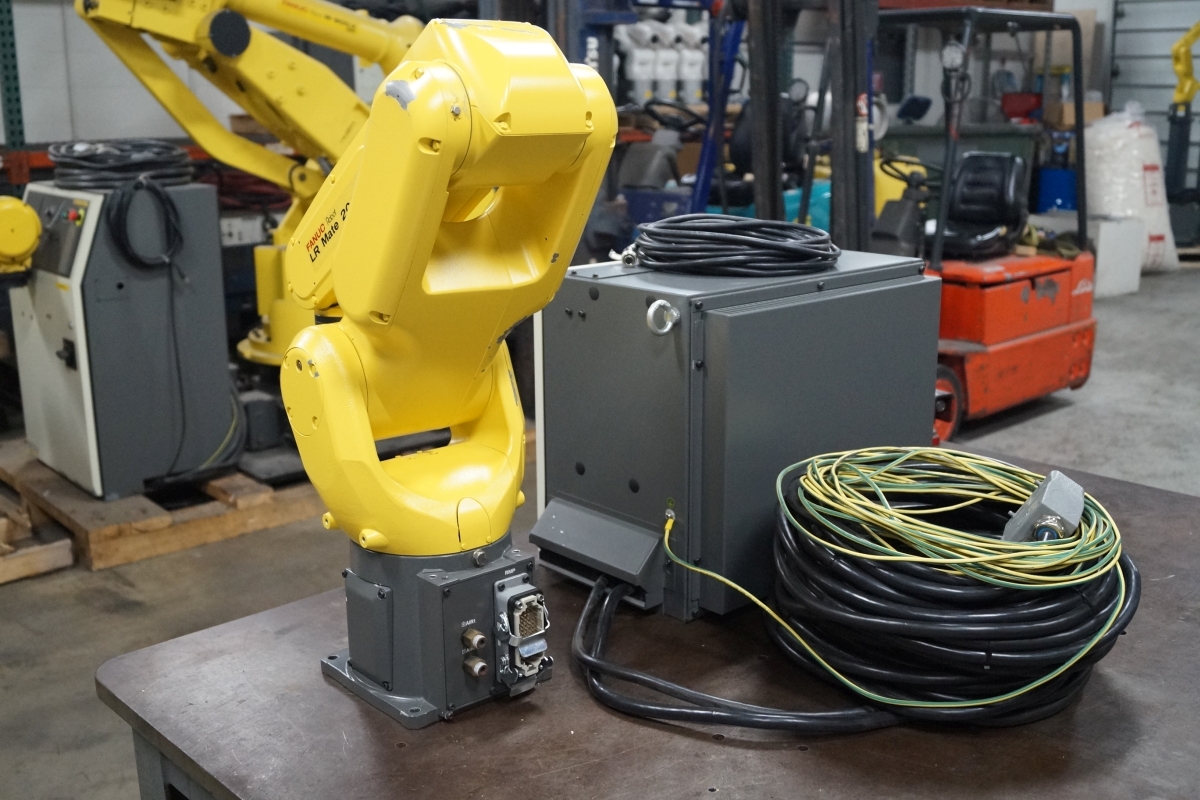

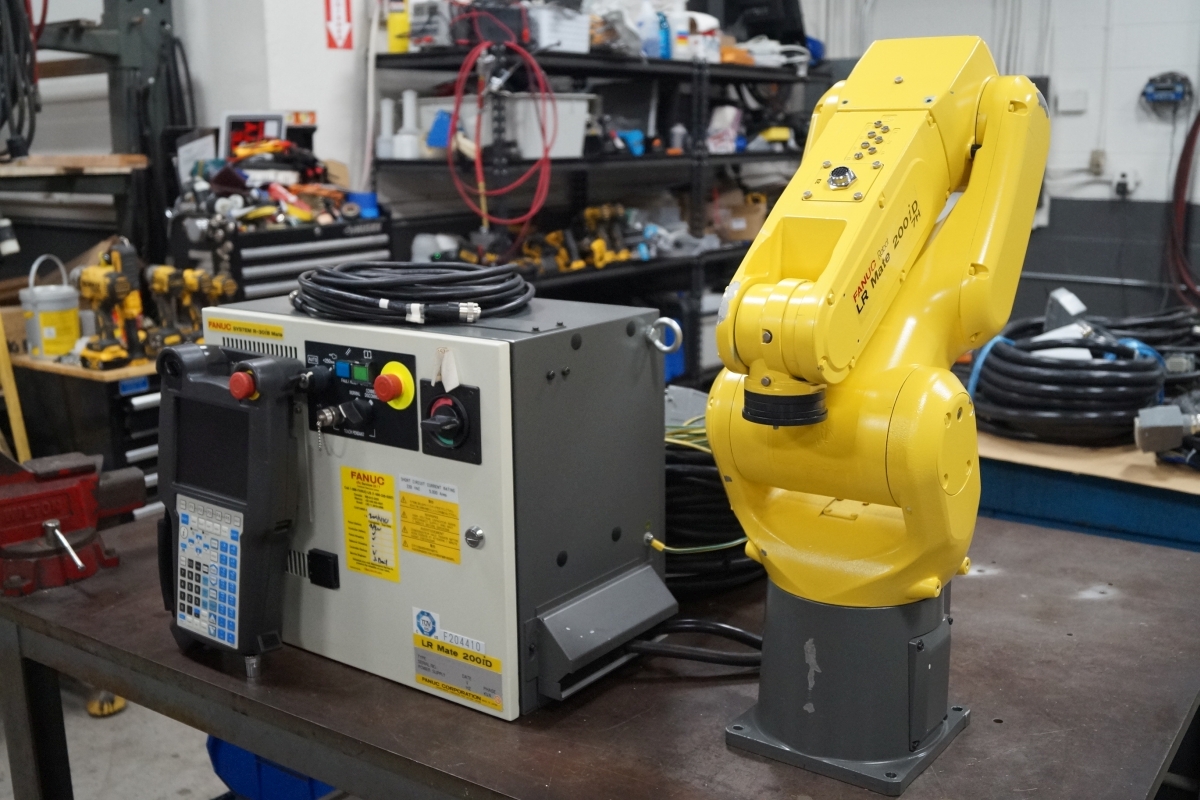

Up for sale we have a good condition 2017 Fanuc LR Mate 200iD/7H with R-30iB Mate Control Robotic System. This robot has been fully tested in our facility and found to be in great working condition and ready to put to work. Software options include: Ethernet/IP Adapter, Motion Package, and iRPickTool. The system is complete, listing is for the arm, controller, connection cables, and i-Pendant teach pendant. This robot could be used for many material handling applications where high speed and precision is required. The R-30iB Mate controller and the hand-held color pendant make for an easy programming interface, very easy to learn for first time robot users. Please see all pictures and video.



MFG Date:
Serial No.
Software:
Hours:
Voltage:
Payload:
Repeatability:
Horizontal Reach:

08/2017

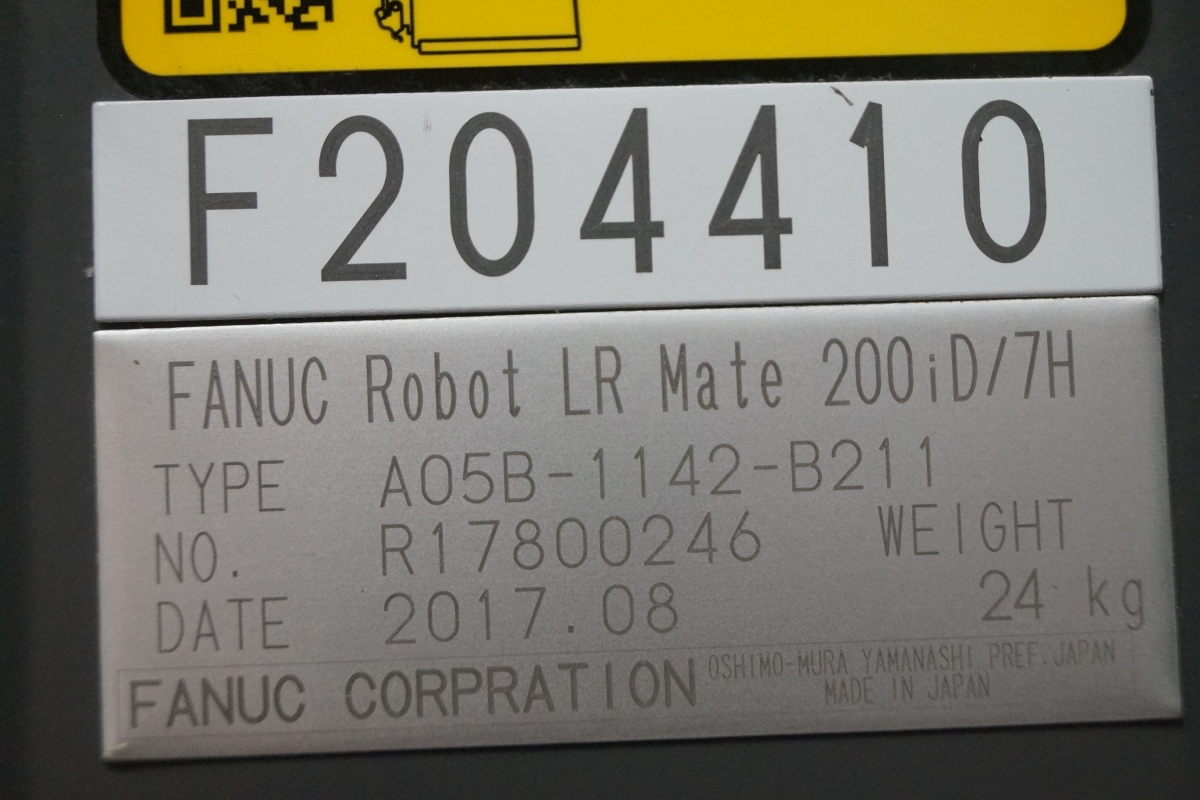

F# 204410

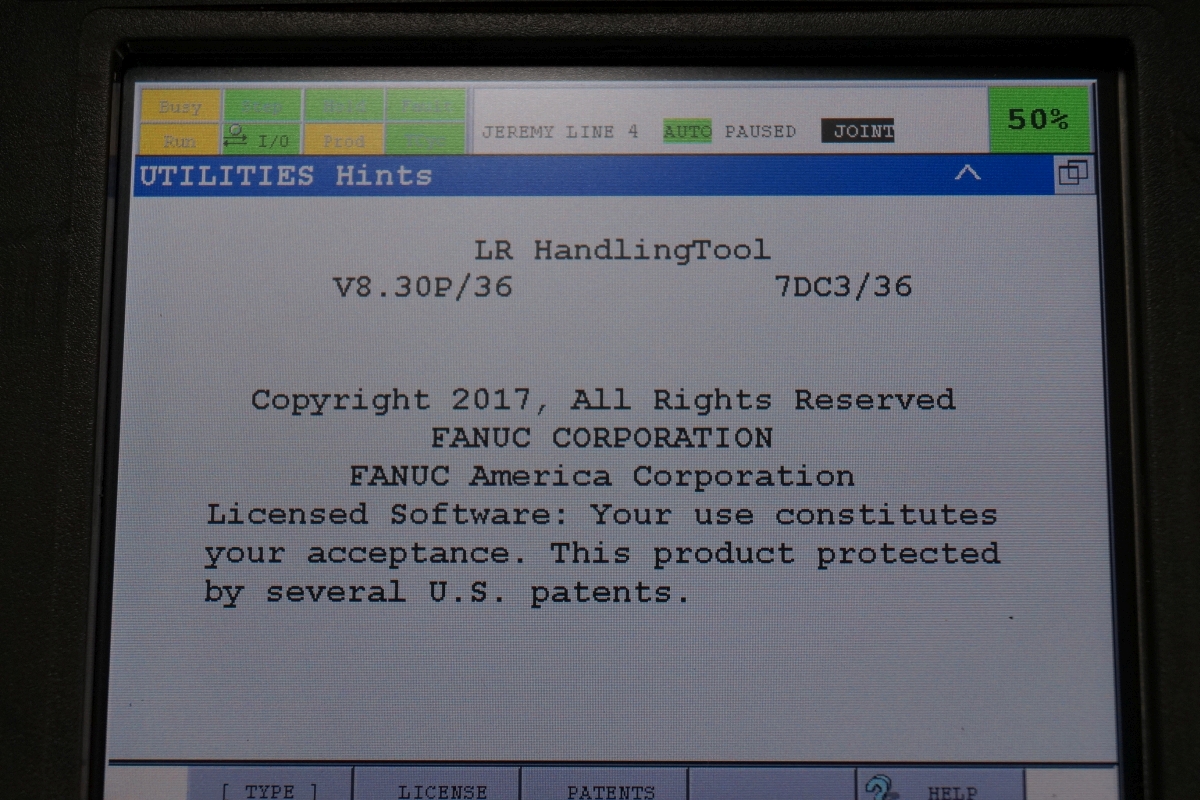

HandlingTool Ver. 8.30P
2,634 (move time)

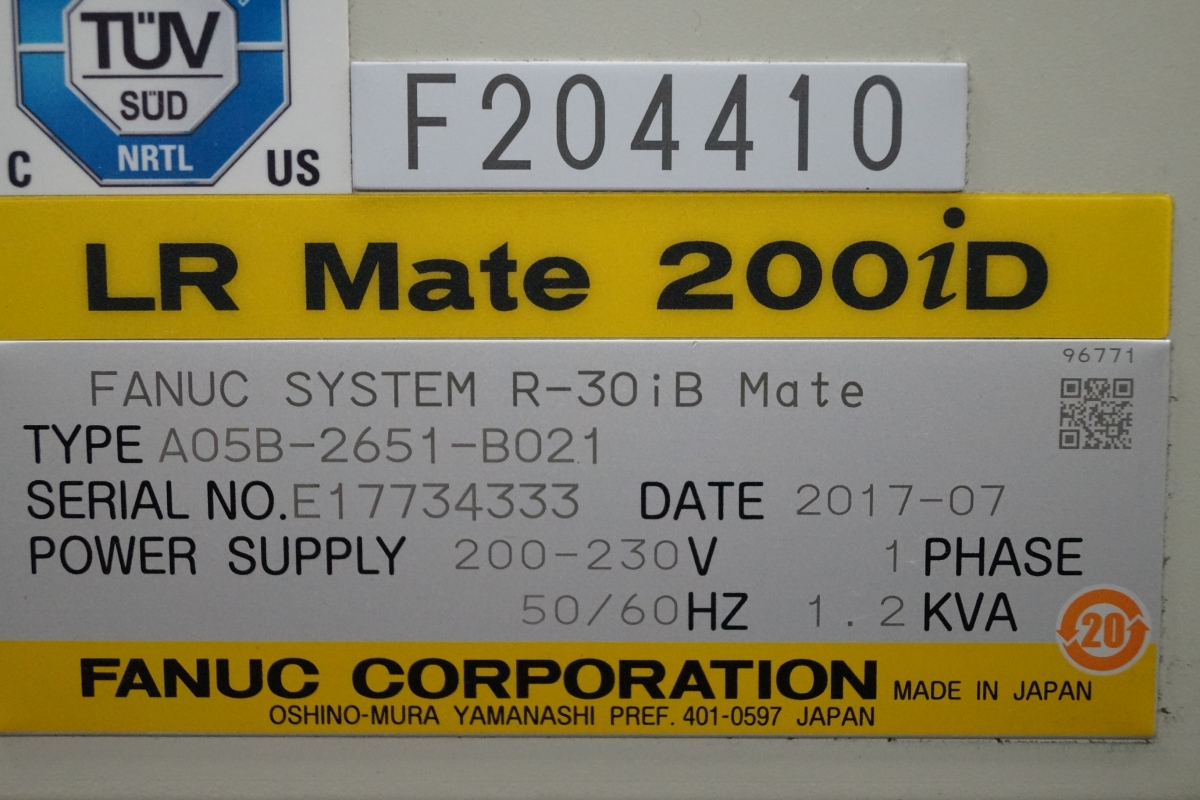

200-230VAC 1ph 50/60hz
7kg (15.4lbs)
±0.01mm (±0.0004in)
717mm (28.23in)



Robot Motion Speed:

  • 1-Axis 450 °/s
  • 2-Axis 380 °/s
  • 3-Axis 520 °/s
  • 4-Axis 545 °/s
  • 5-Axis 1500 °/s

Robot Motion Range:

  • 1-Axis 340°
  • 2-Axis 245°
  • 3-Axis 420°
  • 4-Axis 250°
  • 5-Axis 720°
