Fanuc M-900iB/700 w/ R-30iB Control

$69,200.00

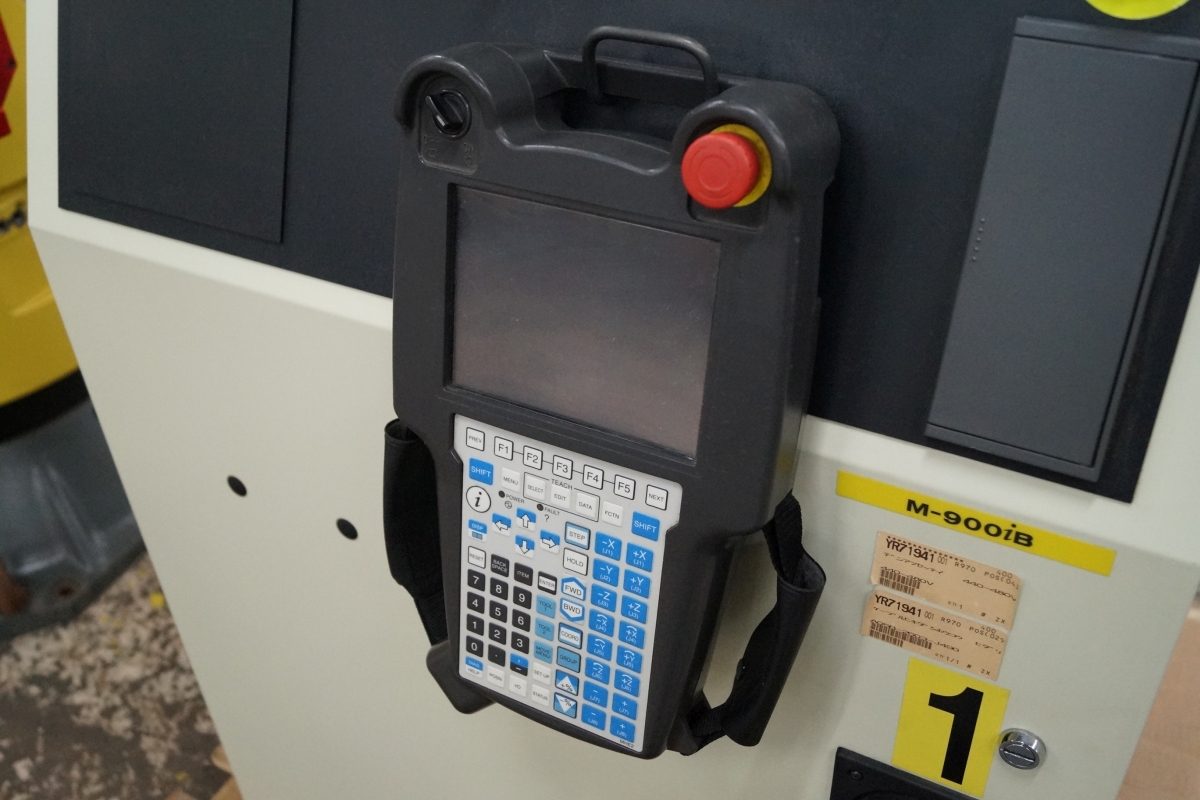

Up for sale we have a excellent condition 2013 Fanuc M-900iB/700 with R-30iB Control Robotic System. This robot was installed but never in production. This robot has been fully tested in our facility and found to be in nearly new condition and ready to put to work. The system is complete, listing is for the arm, controller, connection cables, and i-Pendant teach pendant. Software options include; DCS Position and Speed Check, Ethernet/IP Adapter, Extended Axis Control, Multi-Group Motion, Servo Gun, Devicenet, iRVision GiGe Camera, and others  This robot is from Fanuc’s super heavy payload line. With a wrist capacity over 1,500lbs and a wide motion envelope it makes this robot ideal for large heavy part handling. The R-30iB controller and the hand-held touchscreen color pendant make for an easy programming interface, very easy to learn for first time robot users.



MFG Date:
Serial No.
Software:

Hours
Voltage:
Payload
Supplemental Payload:

Supplemental Payload:
Repeatability:
Horizontal Reach:

9/2013
F# 140290
SpotTool+ Ver. 8.20
397! (move time)
480VAC 3ph 50/60hz
700kg (1543lbs)
550kg (1210lbs) on axis 2
25kg (55lbs) on axis 3
±0.3mm (±0.011in)
2832mm (111.5in)



Robot Motion Speed:

  • 1-Axis 80 °/s
  • 2-Axis 80 °/s
  • 3-Axis 80 °/s
  • 4-Axis 100 °/s
  • 5-Axis 100 °/s
  • 6-Axis 160 °/s

Robot Motion Range:

  • 1-Axis 360°
  • 2-Axis 154°
  • 3-Axis 160°
  • 4-Axis 720°
  • 5-Axis 244°
  • 6-Axis 720°
