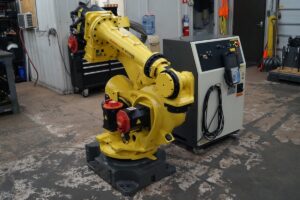

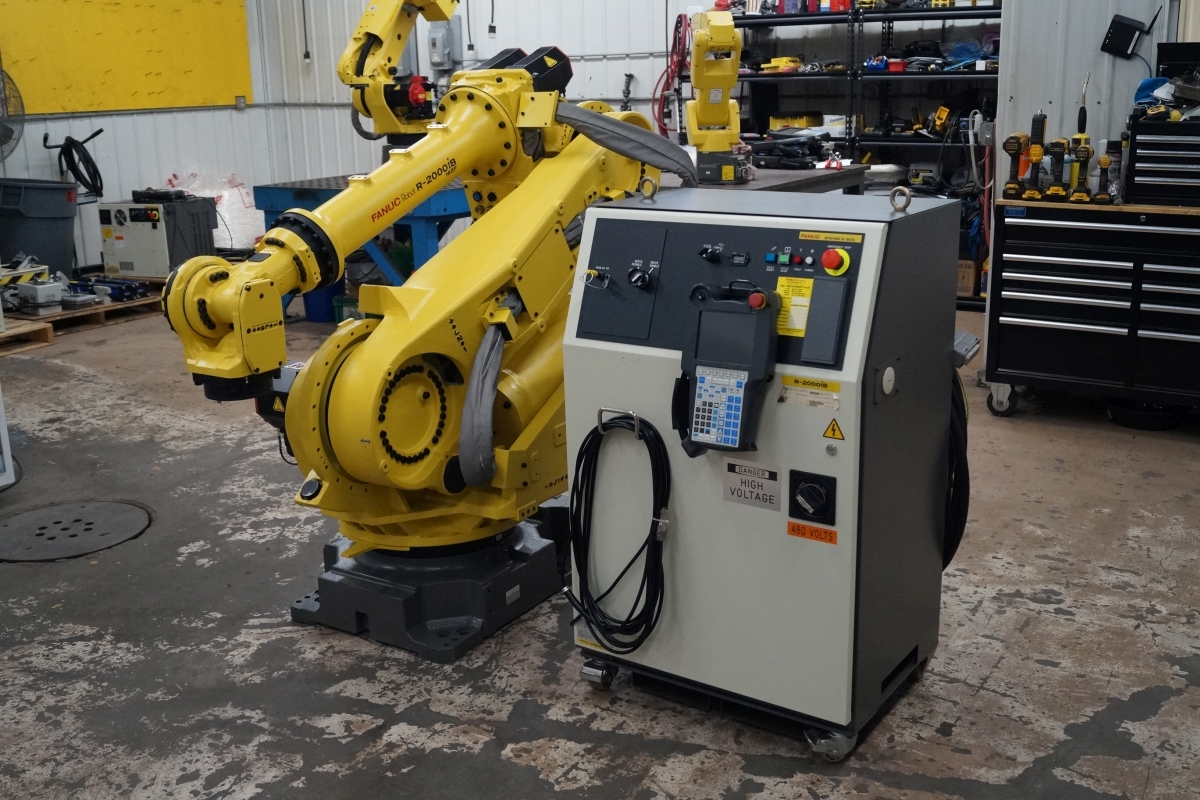

Fanuc R-2000iB/165F w/ R-30iA Control

$21,000.00

Up for sale we have a good condition 2011 Fanuc R-2000iB/165F robot system. This robot is no longer needed and being sold as surplus. It has been tested in our facility and found to be in good condition and ready to put to work. This robot has a great payload and work envelope, able to work behind itself. This listing is for the complete robot system consisting of the robot, controller, and teach pendant. Options include High Sensitivity Collision Detection, DeviceNet, and Spot Welding Kit. This kit has water, welding power, and I/O from the base to a hookup box mounted on the J2 arm. The robot was setup for spot welding but could be used for material handling and other processes. We also have other equipment available to help fulfill your process needs like fencing and risers. Fanuc robots set the standard around the world for robotic systems. Very easy to program, even for first time robot users. Uses a hand held color teach pendant and easy to learn programming software.



MFG Date:
Software:

Hours
Voltage:
Payload
Repeatability:
Horizontal Reach:

11/2011
SpotTool+ Ver. 7.70
9,408 (Runtime)
480VAC 3ph 50/60hz
165kg (363lbs)
±0.2mm (±0.007in)
2655mm (104.5in)



Robot Motion Speed:

  • 1-Axis 110 °/s
  • 2-Axis 110 °/s
  • 3-Axis 110 °/s
  • 4-Axis 150 °/s
  • 5-Axis 150 °/s
  • 6-Axis 220 °/s

Robot Motion Range:

  • 1-Axis ±180°
  • 2-Axis +75° -60
  • 3-Axis +230° -132
  • 4-Axis ±360°
  • 5-Axis ±125°
  • 6-Axis ±360°
